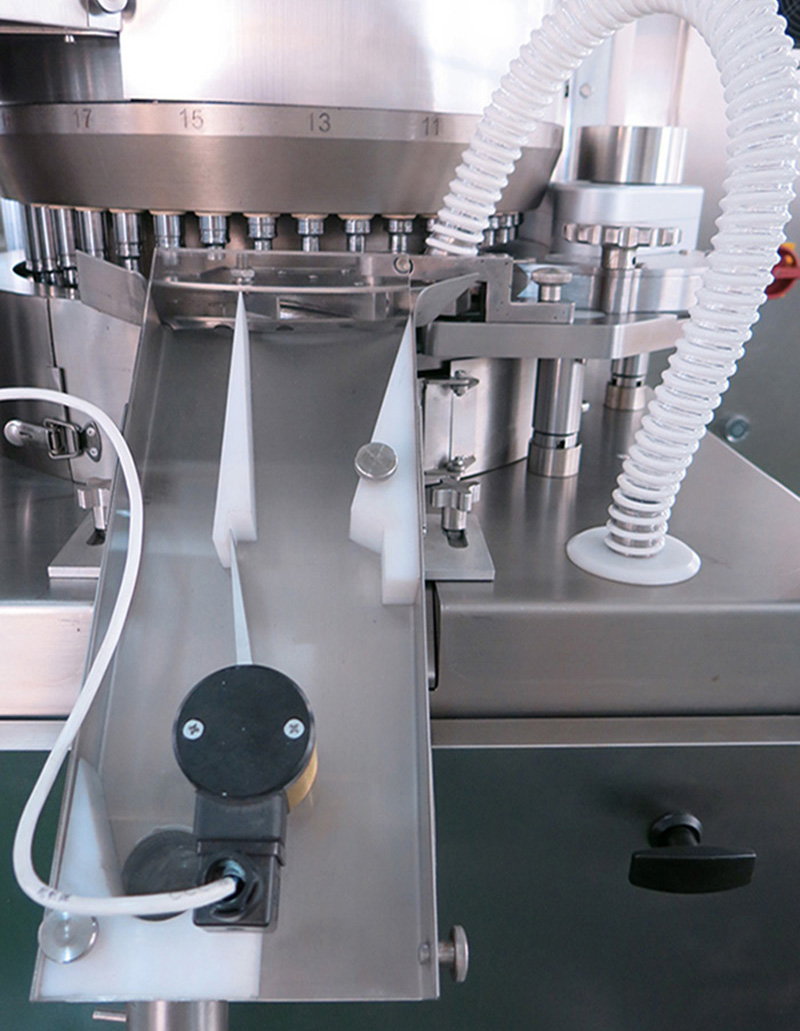

GZPK370 Automatic Tablet Press Machine

This is a type of fully automatic high speed tablet press.

It is with two compression force stations for a best performance.This machine really has a good working for effervescent tablet, vitamin and pharmaceutical pills.

26/32/40 Stations
D/B/BB Punches
Up to 264,000 tablets per hour

High speed production machine capable of single-layer tablets.

Send email to us

Product Detail

Product Tags

Features

1. Machine is without knobs that all by touch screen operation.

2. Main pressure of 120KN and Pre-Pressure of 30KN, tablet be formed by double times.

3. Force feeder consists of double impellers with central feeding which guarantee the flow of powder and ensures the accuracy of feeding.

4. Automatic tablet weight control and automatic adjustment.

5. Columns are durable materials made from steel.

6. Tooling parts can be freely adjusted or removed which is easy for maintenance.

7. Main pressure,Pre-Pressure and feeding system all adopt modular design.

8. The upper and lower pressure rollers are easy to clean and easy to disassemble.

9. Electrical cabinet is at the back side of machine which avoid powder pollution.

10. Machine is with central automatic lubrication system which is fully automatic.

11. The main drive system, lubricating system, and handwheel adjustment mechanism are completely sealed by the left and right door panels, rear door panels and control cabinet through sealing strips to prevent dust from polluting the machine.

12. The material of the pressure roller is alloy tool steel with high hardness to ensure the continuous use of the machine.

13. It is equipped with safety interlock function.

14. Electrical components are made of SIEMENS.

Video

Specification

Model		GZPK370-26	GZPK370-32	GZPK370-40
Number of punch stations		26	32	40
Punch type		D EU1"/TSM1"	B EU19/TSM19	BB EU19/TSM19
Punch shaft diameter	mm	25.35	19	19
Die diameter	mm	38.10	30.16	24
Die height	mm	23.81	22.22	22.22
Turret rotation speed	rpm	13-110
Capacity	Tablets/hour	20280-171600	24960-211200	31200-264000
Max.Main pressure	KN	120	100
Max. Pre-pressure	KN	30	20
Max.Tablet diameter	mm	25	16	13
Max.Filling depth	mm	20	16	16
Net Weight	Kg	1600
Machine dimension	mm	100011301880mm
Electrical supply parameters		380V/3P 50Hz*Can be customized
Electrical supply parameters		Power 7.5KW
