A Professional Pioneer in Tablets and Capsules & Production Line Solutions

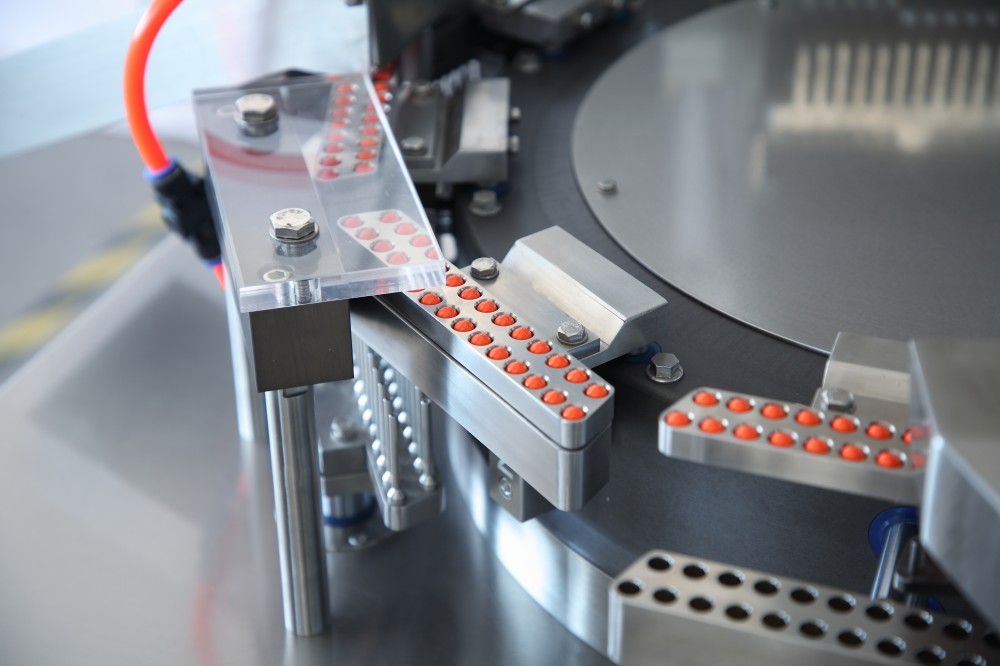

NJP3800 High Speed Automatic Capsule Filling Machine
New technology
• Turret with sealer for avoid powder leakage;
• Seamless connection;
• Double fixed shaft design, more stable ;
• Speed increase 20%.
Video
Specifications
|
Model |
NJP-200 |
NJP-400 |
NJP-800 |
NJP-1000 |
NJP-1200 |
NJP-2000 |
NJP-2300 |
NJP-3200 |
NJP-3500 |
NJP-3800 |
|
Capacity(Capsules/min) |
200 |
400 |
800 |
1000 |
1200 |
2000 |
2300 |
3200 |
3500 |
3800 |
|
Filling type |
|
|
Powder、Pellet |
|||||||
|
No.of segment bores |
2 |
3 |
6 |
8 |
9 |
18 |
18 |
23 |
25 |
27 |
|
Power Supply |
380/220V 50Hz |
|||||||||
|
Suitable Capsule Size |
capsule size00”-5” and safety capsule A-E |
|||||||||
|
Filling error |
±3%－±4% |
|||||||||
|
Noise dB(A) |
≤75 |
|||||||||
|
Making rate |
Empty capsule99.9% Fully capsule over99.5 |
|||||||||
|
Machine Dimensions(mm) |
750*680*1700 |
1020*860*1970 |
1200*1050*2100 |
1850*1470*2080 |
||||||
|
Machine Weight(kg) |
700 |
900 |
1300 |
2400 |
||||||
High light
• Touch Screen, PLC program control panel with LCD.
• Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
• Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.
• Easy speed selection and closed capsule length adjustment.
• Electrical Appliance control system approved to CE, and international standard.
• Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.
• Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.
• Large cam mechanism keeps turret of mold together with the whole equipment running with.
• Balance and completely guarantees the machine operating with highest precision and accuracy.
