1. Design of GMP.
2. High quality of all stainless steel material.
3. Reliable safety sealing system and dust-proof system.
4. High visibility isolated door avoid powder pollution.
5. Easily remove parts for easy clean and maintenance.
6. Pressing is in a fully closed room which is safe.

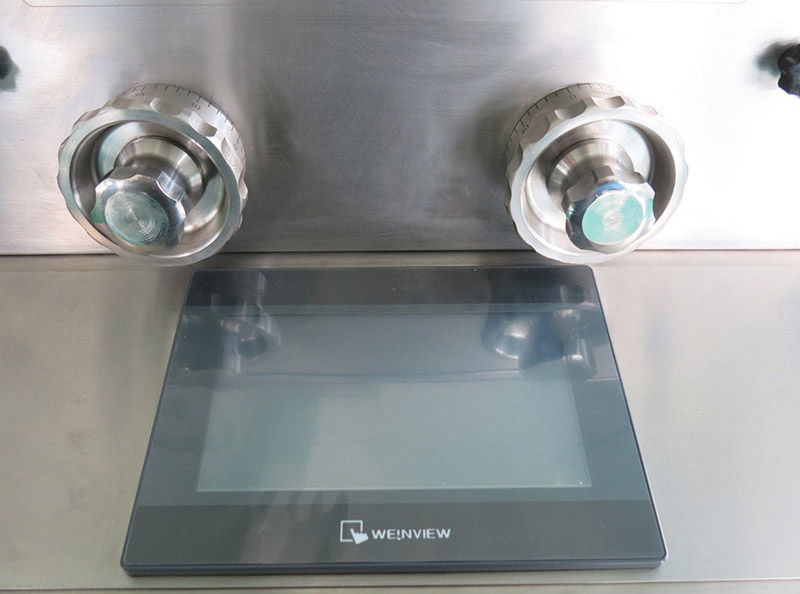

7. Machine covered with transparent windows so that press condition can be observed clearly and windows can be opened for cleaning and maintenance. The lay-out of all the controllers and the operate parts is reasonable.
Model |
ZPT130 |
||||||||
Number of punch stations |
5 |
7 |
9 |
10 |
12 |
5 |
7 |
9 |
10 |
Max. Pressure(kn) |
40 |
50 |
|||||||
Max.Dia of Tablet (mm) |
13 |
20 |
|||||||
Max.Thickness of Tablet (mm) |
6 |
||||||||
Max.Depth of Filling (mm) |
15 |
||||||||
Max.Turret Speed (r/min) |
32 |
25 |
|||||||
Production Capacity (pc/h) |
9600 |
13440 |
17280 |
19200 |
23040 |
7500 |
10500 |
13500 |
15000 |
Voltage (v/hz) |
380V/3P 50Hz |
380V/3P 50Hz |
|||||||
Motor Power (kw) |
1.5 |
2.2 |
|||||||
Overall Size (mm) |
640*480*1110 |
700*530*1210 |
|||||||
Weight (kg) |
260 |
300 |

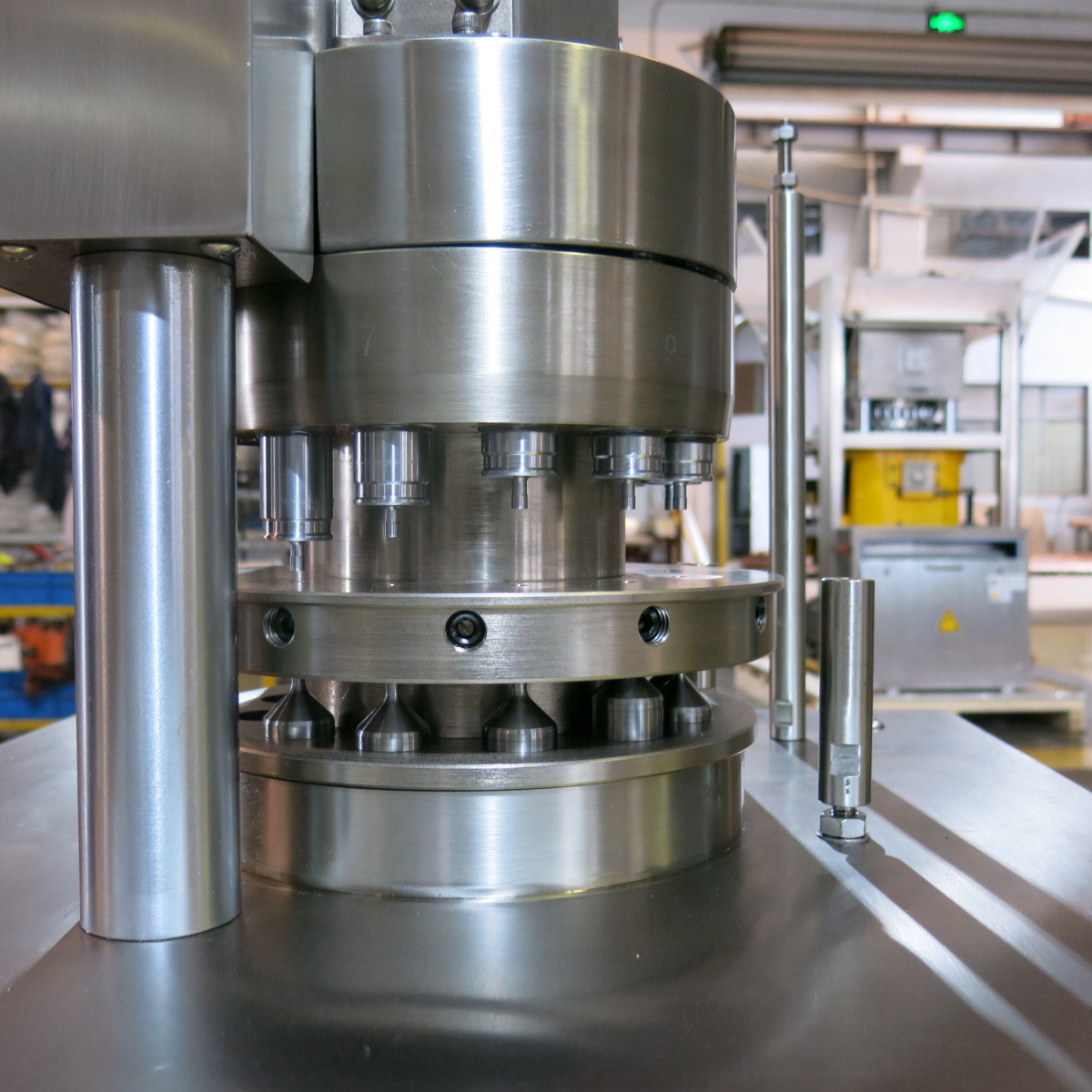

● Middle die’s fastening method adopt side way technology.
● The pillars are durable materials made from steel.
● Extended punches that can install oil rubbers, for food and Pharmaceuticals.
● Complies CE.
● Punches by hard chrome plating treatment for anti-rust. Also free upgraded to 6CrW2Si material.
