ZPTF420 Large Pressure Tablet Press Machine with EU Tooling

This machine is medium speed Tablet Press Machine with independent operation cabinet. The pre-pressure equals main pressure both are 100KN.


Product Detail

Product Tags

Descriptive abstract

This machine is medium speed Tablet Press Machine with independent operation cabinet. The pre-pressure equals main pressure both are 100KN.

Highlight

1.Pre-pressure equals main pressure, tablet can be easy formed by double times compression.

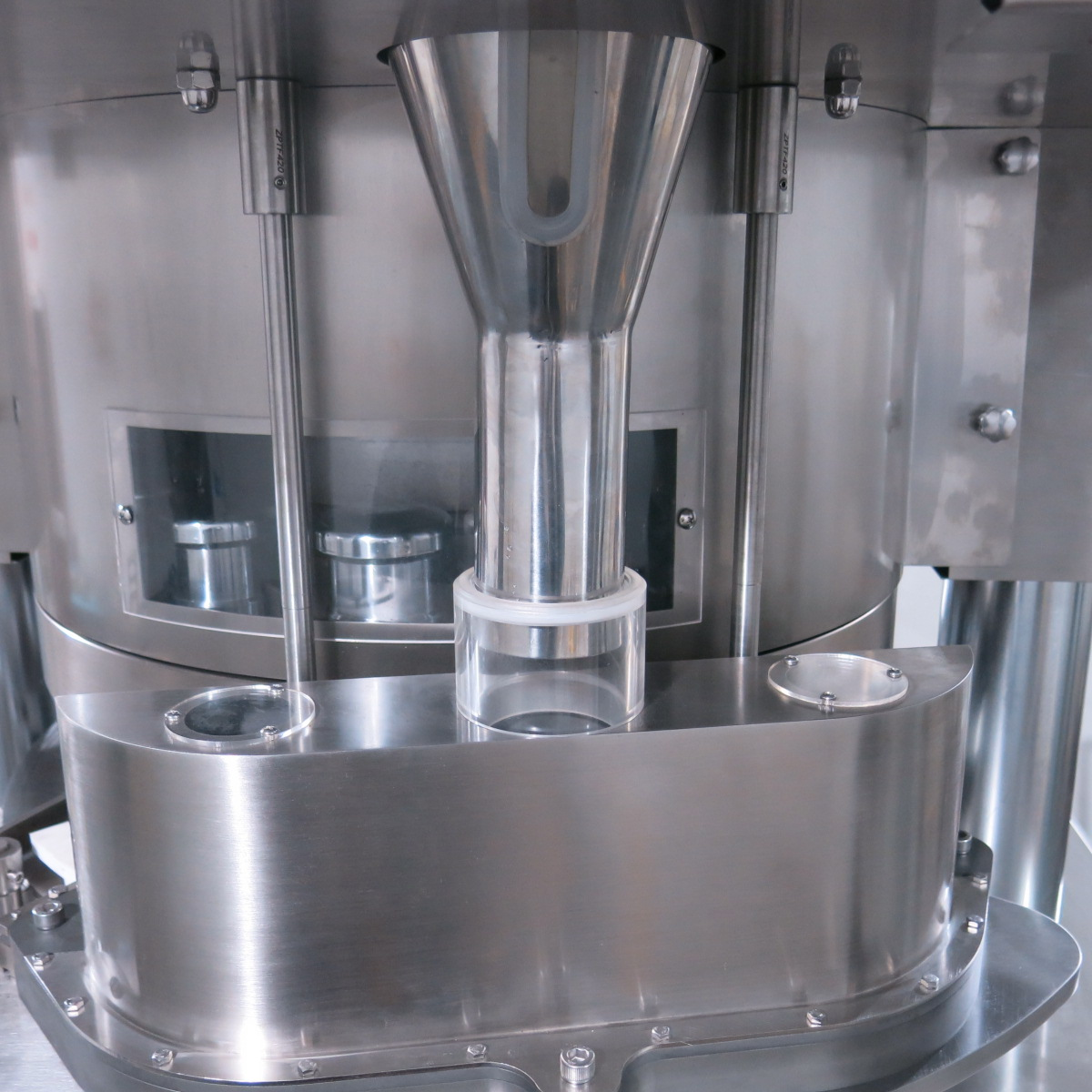

2. Equipped with large area force feeder that are fully closed.

3. The middle turret that contact material is 2Cr13  stainless steel for anti-rust.

4. Appearance of SUS304 all stainless steel.

5. Punches material free upgraded to 6CrW2Si, by hard chrome plating.

6. Middle die’s fastening method adopt side way technology.

7. EU type punches that can install oil rubbers.

8. With punch sealers on upper and lower turret which effectively avoided powder pollution.

9. Equipped with safety interlock device.

10. Powder suction system connected with duct collector.

11. With automatic central lubrication for thin oil.

12. Four columns structure are durable materials made from steel.

13.Top and bottom turret made of ductile iron and high-strength.

14.Free customized according tablet size and specification.

15. Independent cabinet which avoid powder pollution.

Features

• Touch screen and knobs operation, filling depth (tablet weight) and pressure (hardness) adjust through the knobs.

•With single hopper and single discharge.

•Fully closed windows keep a safe pressing room.

•Pressing room is complete separated with the driven system avoid pollution.

•Drive system is sealed in turbine box.

•PLC control system, easy operation through by touch screen and hand wheels.

•The structure of main press and pre pressure roller frame is integrated, so the bearing strength is higher.

•The waste oil diversion system can divert the used lubricating oil waste oil to the box which is under the machine, thus to avoid the accumulation of waste oil inside the turret that prevent material contamination.

•With overload protection function.

•Machine is easy to operate and maintenance.

Parameter list

Model

ZPTF420-25

ZPTF420-35

ZPTF420-41

ZPTF420-45

Number of punch stations

25

35

41

45

Punch type

EU D

EU B

EU BB

EU BBS

Max. Main Pressure(kn)

100

Max. Pre-Pressure(kn)

100

Max.Dia of Tablet (mm)

25

16

13

10

Max.Thickness of Tablet (mm)

8

Turret Speed (r/min)

5-35

5-38

Tablet output (pcs/minute)

7500-52500

10500-73500

12300-93480

13500-102600

Voltage

380V/3P 50Hz

Motor Power(kw)

7.5

Machine dimension  (mm)

1070*1020*2100

Electrical cabinet dimension (mm)

700*400*910

Weight (kg)

2000



Youtube Video link

Detail

1
2
3
